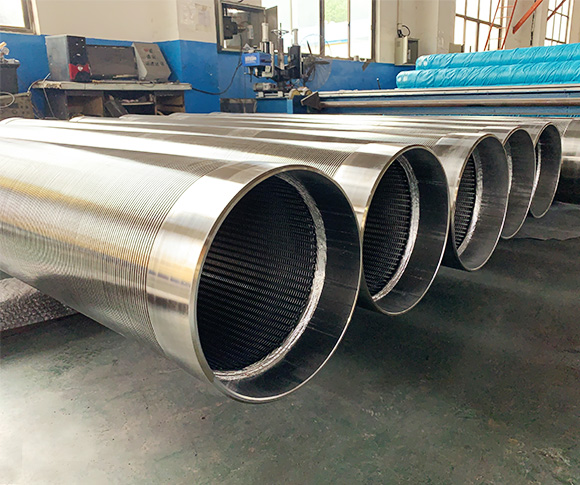

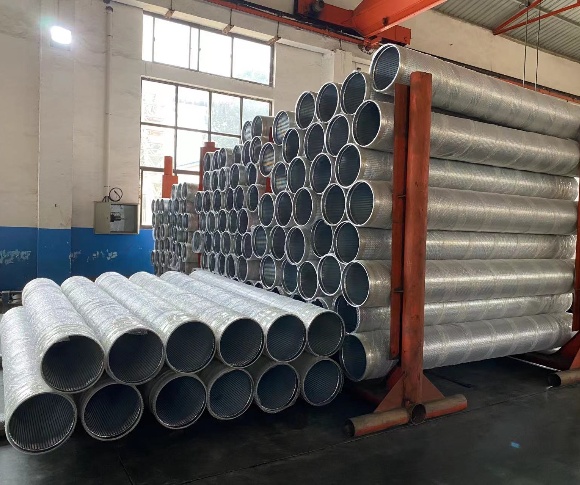

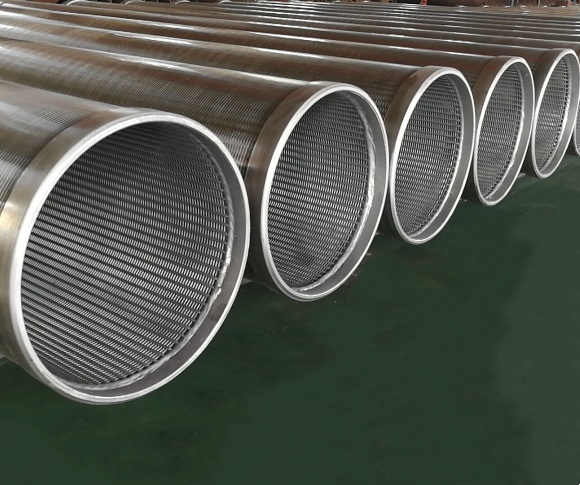

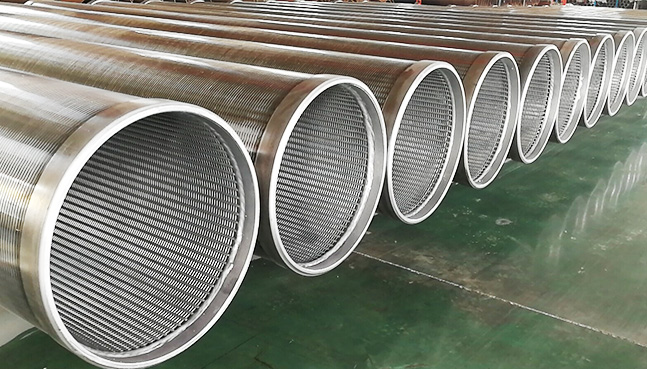

Wire Wrapped Screen
- Product Description:

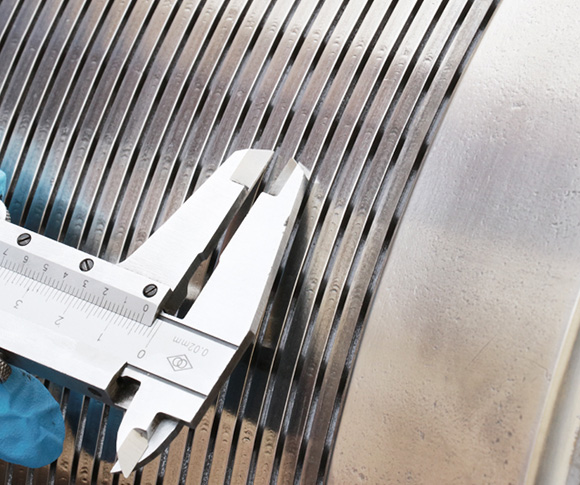

- The wire wrapped screen is made up of rods and profile wire. This type of wire wrap screen has a structure and high open area, as well as accurate slot dimension. Slot opening for the V wire screens are manufactured by spacing successive turns of the outer wire to produce the desired slot size. Each slot opening between adjacent wires is V-shaped, from the special shape of wire used to form the screen surface. The V-shaped openings designed to be non-clogging, narrowest at the outer face and widen inwardly.
Features & Benefits
1.Non-clogging
2.Large filtering area
3.Long service life
4.Excellent construction strength
5.Specifications and end connections of wedge wire screens can be fabricated according to customers' requirement.
-
RFQ:
1. Diameter: determined by the borehole diameter and pump size.
2.Material: stainless steel, carbon steel, galvanized carbon steel according to the PH value of water.
3. Slot size: as per the size of filter medium and gravels.
4.Collapse strength and tensile strength: decided by the depth of screen installed.
5.Unit length: 2.9 and 5.8m fit for the container.

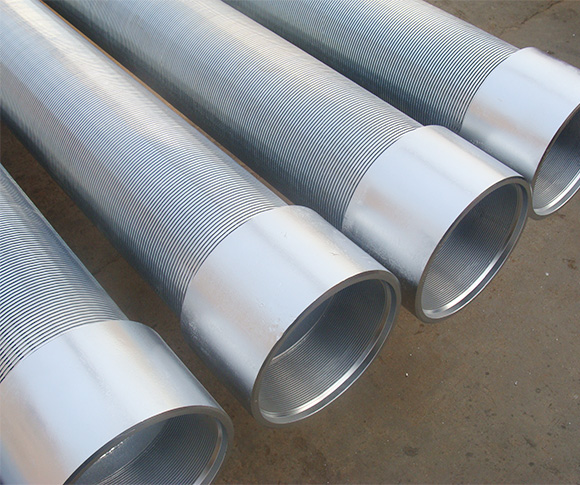

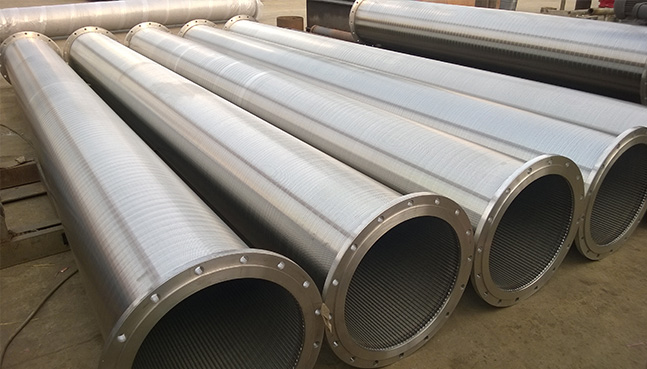

6. Connection ways: Welding, API Thread(Pin and Box), or Flange.
7.CO,FORM A, FORM E, CIQ,COC,SASO and other required certificate can be provided.
-
Application:
Wire wrapped screen is widely used throughout the world for water, oil & gas wells, and is the dominant screen type used in the water well industry.
This water well screen is recommended in the following situations:
• Formation comprised of small or fine particles
• Water wells where gravel packs will be installed
• Thin aquifers, where maximum open area is required
• Small diameter wells
Specification
| Diameter: | 24.5mm to 1200mm |
| Material: | Low Carbon Steel, Low Carbon Galvanized steel (LCG), Stainless Steel ( 201,304, 304L, 316, 316L) etc. |
| Slot sizes: | from 0.025mm up. |
| Wire sizes: | Width(mm): 1.0 1.5 1.8 2.0 3.0 3.2 3.7 4.0 or customized |
| Height(mm): | 2.0 2.2 2.5 3.0 3.6 4.3 4.7 5.0 6.0 7.0 or customized |
| Support rod sizes: | Width(mm): 2.0 2.2 3.00 3.2 4.0 or customized |
| Height(mm): | 3.0 3.5 5.0 6.0 6.3 7.0 or customized |
| Round: | From 2.50mm to 6.0mm |
| Open area: | up to 60% |
| Lengths: | max to 6 meters. |
| End: | Welding ring,Flange or threaded ends. |
