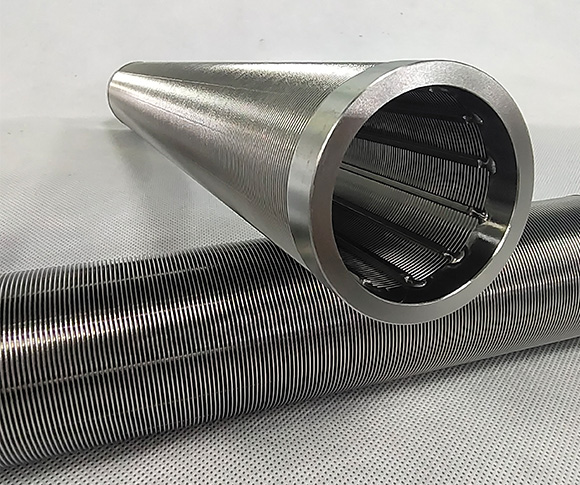

Wedge Wire Filter Elements
- Product Description:
- The wedge wire candle filters, also known as wedge wire slot tubes,welded wedge wire filter tube,wedge wire filter elements, is made of the V-shaped wires and support rods with resistance welding.
- Compared with mesh filters and perforated metal filters, the unique continuous slots of wedge wire filter elements can obtain larger flow area and more accurate slots.And the fineness can achieve 25 microns.
- The direction of the flow is determined by the position of the surface profiles in relation to the support profiles. Wedge wire filter tubes are either flow-out-to-in (FOTI) or flow-in-to-out (FITO).Shine Filters can custom manufacture wedge wire slot tubes to many varied specifications including different end fittings to suit your application.
End Types Of Wedge Wire Screen Tube
-

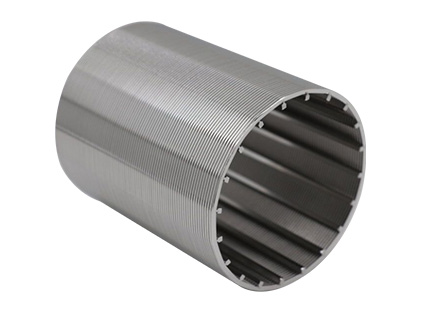

Cutting type
-

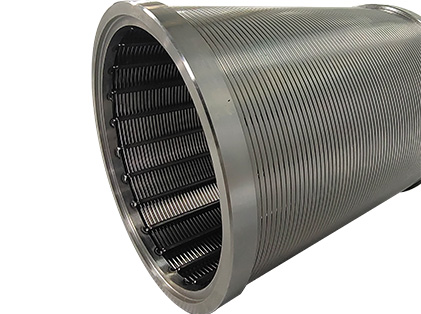

Welded rings
-

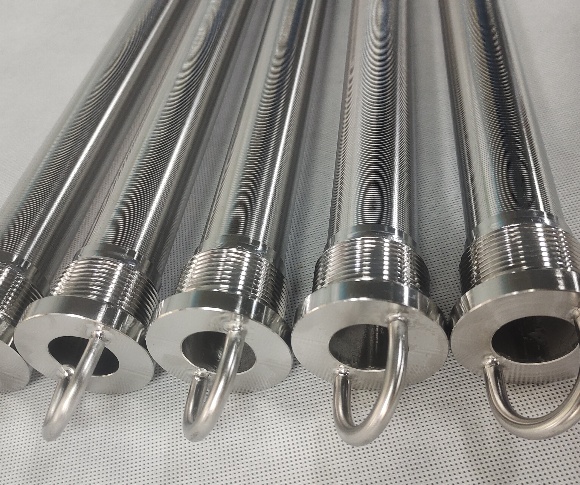

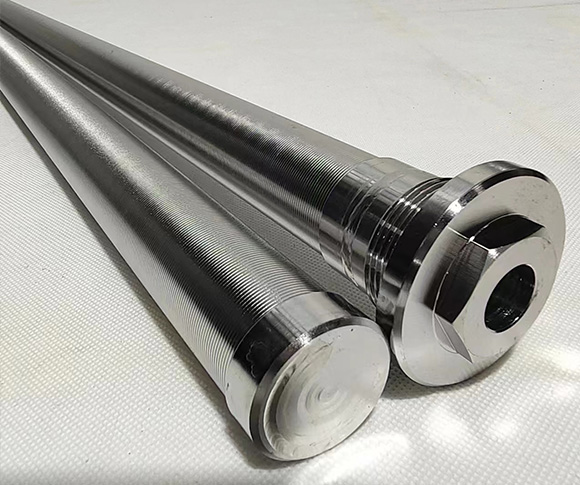

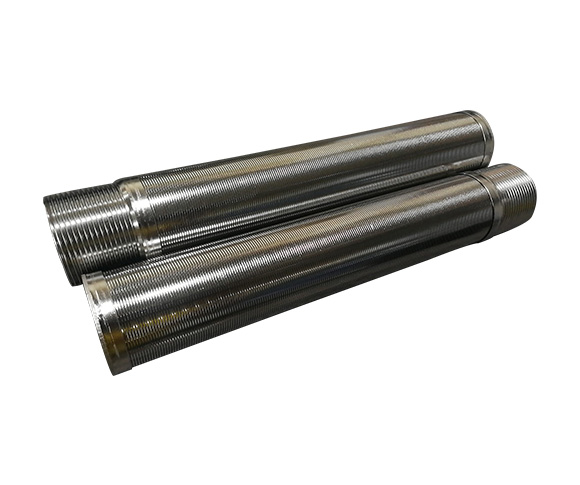

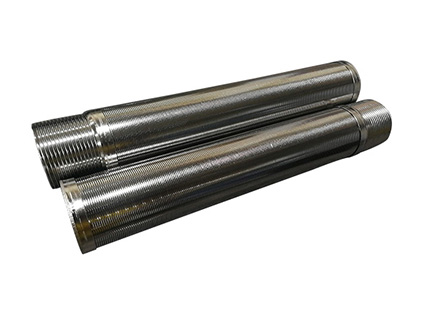

Threads
-

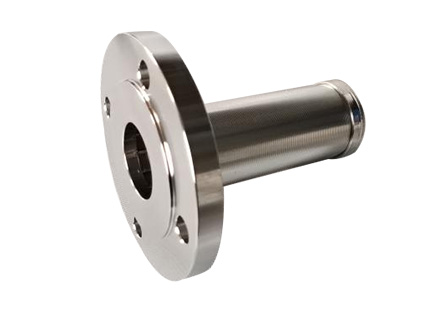

Flange
Specification
| Materials: |
SS304/304L/316L/321/904L Duplex 2205/2507 Hastelloy C276 |
| OD: | 24.5-150mm |
| Slot sizes: | 0.025-10mm |
| Maximum differential pressure: | 300 psi. |
| Maximum temperature: | Synthetic seals 500 oF / NPT 1500 oF. |
| Length: | 10", 20", 30", 40" and customized types |
| Connection type: | welded rings,threads or flanges |
| Bottom type: | flat or taper. |
Features
• Non-clogging and plugging performance.
• High precision slot sizes,automatic welding ensure the accuracy of the slot sizes
• Easy cleaning:the surface can be removed by back flushing of scraper type.
• Low pressure drop and High mechanical performance
• Long service life and Low maintenance
The filter tubes are widely used in the petrochemical,pharmacy,water treatment and food processing industries as they provide efficient filtration systems for liquid and solid separation.
Applications
• The wedge wire filters are used in primary filters with large difference of flow and pressure in various water treatment fields, including Boiler water, petrochemical water, paper water, ship ballast water.
• The wedge wire candle filters can be used as pre-coated candles wedge wire screen (vertical filtration elements, beer candles ) for the clarification Kieselguhr alluvial filters /Candle Precoat Filters of beer.
