Product Description:

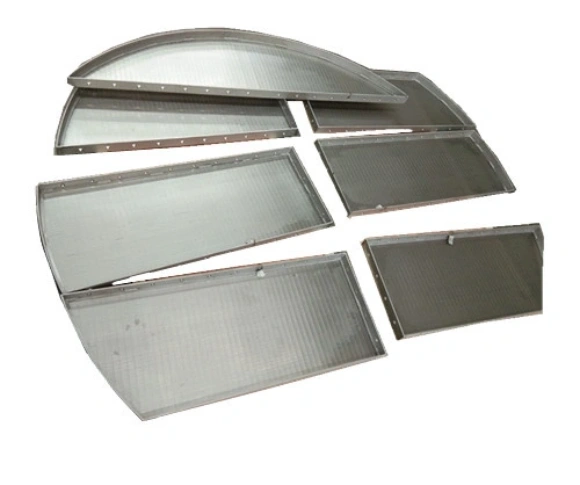

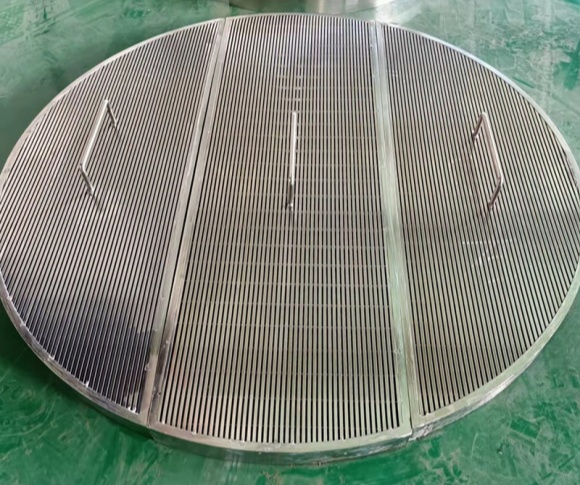

The support grid,also named wedge wire reactor internals, is composed of steel frame, grille, wedge wire screen and other accessories. Wedge Wire Support Grid is designed to be installed into the bottom head of hydroprocessing or gas dehydration vessels, allowing for better liquid and gas flow, bed utilization, distribution and an overall more efficient process.

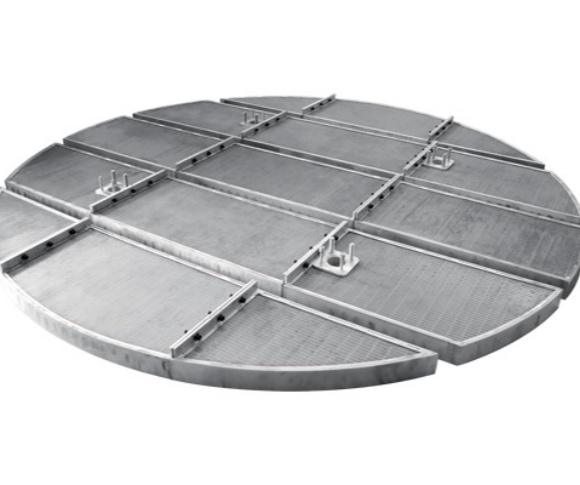

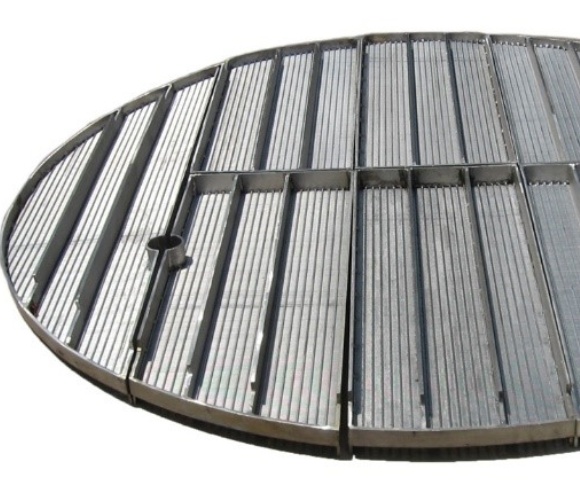

There are whole type and joint type wedge wire support grids for choice.This allows for easy on-site assembly, retrofitting and transporting sections through existing manways.The Support Grid lies directly on the bottom head surface, allowing for the entire volume to be filled with media. Increased bed volume allows for the conversion of existing vessels to achieve higher process capacity and new vessels to be built shorter in shell length.

Specification

Materials:

304/304L/316/3016L/321/nickle alloy

OD: 200mm To 2500mm. Diameter Customized
Slot sizes: 0.5mm,0.6mm,0.7mm,0.8mm,1.0mm,customized
Sections & shape  1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized
Wedge wire  1*2mm,2*3mm,3*5mm,4*7mmm and so on
Support rod 2*3mm,3*5mm,4*7mm



Features

• Continuous-slot design provides an increased open area.

• The continuous slot formed by V-shaped surface wires ensures a two-point contact between the particles and the slot to minimize clogging.

• High-precision slot sizes are available to meet your requirements.

• V-shaped surface wires allow for easy cleaning.

• Very low pressure drop.

• Additional supports are utilized to accommodate extreme load conditions.

• Low maintenance.



Applications

• Slovent recovery.

• Catalytic reforming.

• Ammonia converters.

• Nox removal systems.

• Isomerization processes.

• Styrene dehydrogenation.

We are providing good & on time services to our valuable customers.
