Product Description:

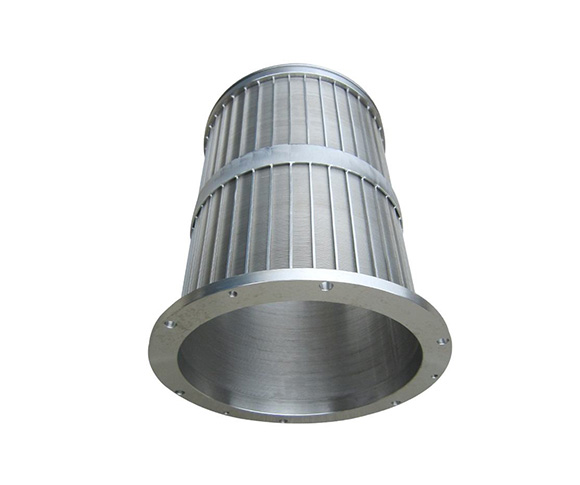

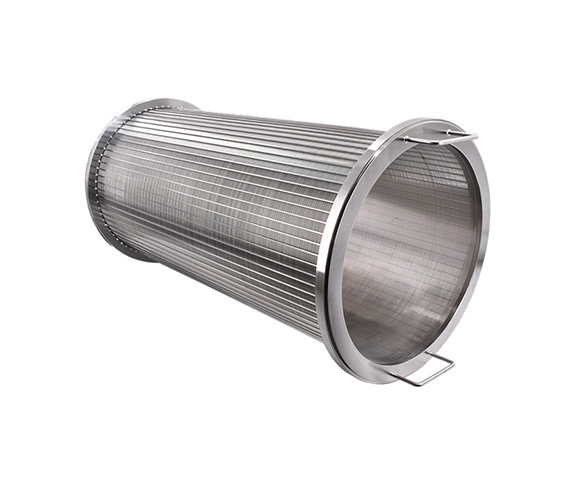

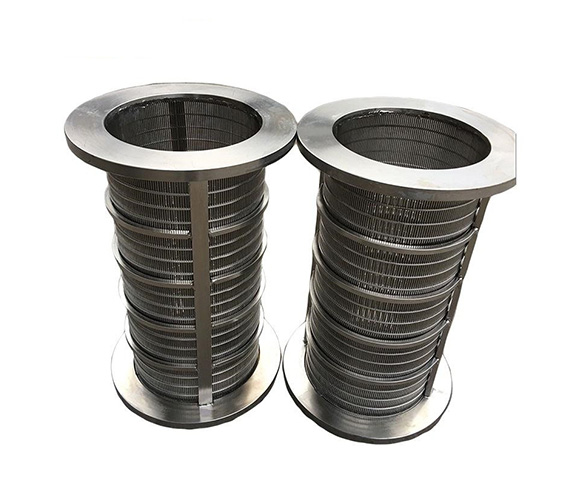

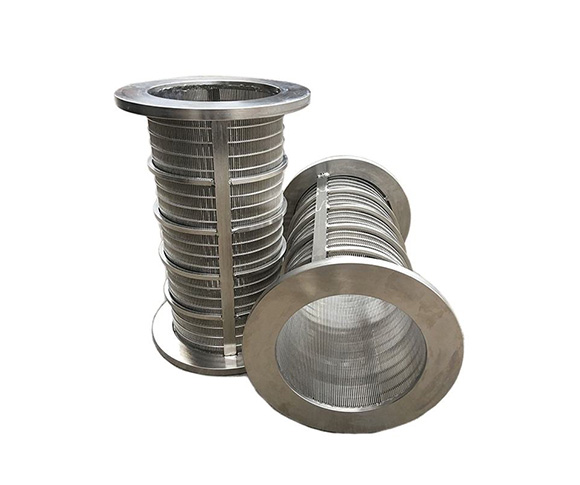

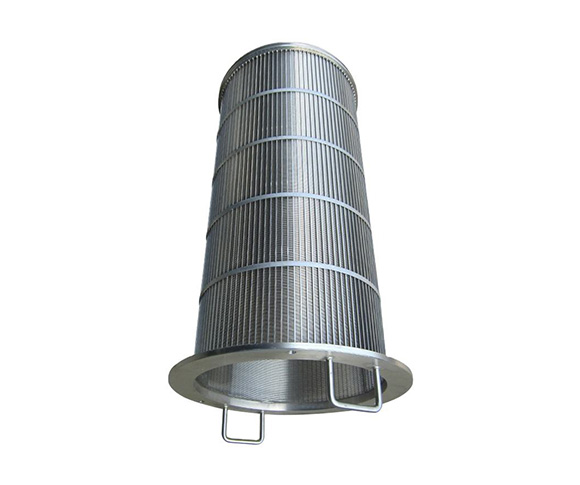

Wedge wire Rotary Drum Screen, is made of stainless steel 304 or 316L wedge wire screens,the wedge wire rotary screens have clear advantage of very high filtration efficiency, longer life and accurate aperture.The wedge wire drum filters are used as an efficient way to remove unwanted particles in the paint and pigments production.The wedge wire cylindrical screens have an automatic back flush cleaning cycle and therefore ensure continuous filtration.
Shine design the rotary drum wire screen with a wide range of wire and rod shapes, sizes and materials, the end type of wedge wire drum filters are welded flanges or welded rings for easy installation,we will work with you to select the ideal combination for the product you are looking for, creating the optimum screens for your cleaning and filtration application.

Features

• High temperature resistance (>100°C)

• A wider open area

• Very Strong Construction

• Easy slot customisation

• Low Pressure loss

• Long life and lowmaintenance cost

Specification

Material: SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
OD: 50-1200mm
Slot size:  Customized 0.02-3mm
Length: customized sizes
End types: flanges, welded rings etc



Applications

• Poultry, meat and seafood processing

• Fruit and vegetables processing

• Snack and frozen food processing

• Brewing and wine making processing

• Chemical processing

• Municipal waste water treatment plant

• Industrial waste water treatment plant

• Tanning industrial processing

We are providing good & on time services to our valuable customers.
