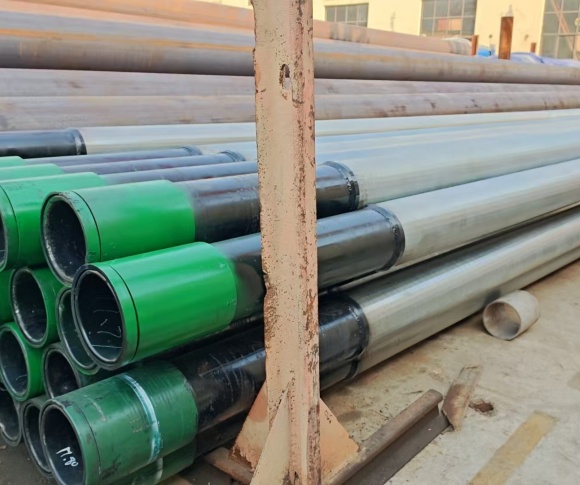

Pipe Base Water Well Screen consists of a wire-wrapped jacket and a base pipe. Keystone shaped wire are helically wrapped around the vertical ribs and each point of contact is welded.
Screen and pipe are welded together to make a rugged, reliable unit for deep vertical wells and long, horizontal remediation of supply wells.Pipe based well screens combine the hydraulic efficiency of wire-wound screens with the great strength of base pipe.Because of the strength of the pipe, the wrap wires can be smaller, which produces greater open area.
The pipe-based screen is recommended when high collapse resistance is required and when the screens’ length generates a high longitudinal constraint.
OD:273mm
Slot sizes:1mm
Length:5.8m per piece
Quantity:46 pieces
