Hub and Header Laterals
- Product Description:
- The lateral assemblies consist of a series of lateral screens connected to either a central header or a hub pipe.The wedge wire lateral assemblies have two types: Hub laterals and Header laterals. The lateral assemblies promote even distribution while also avoiding flow/pressure concentrations
Hub laterals

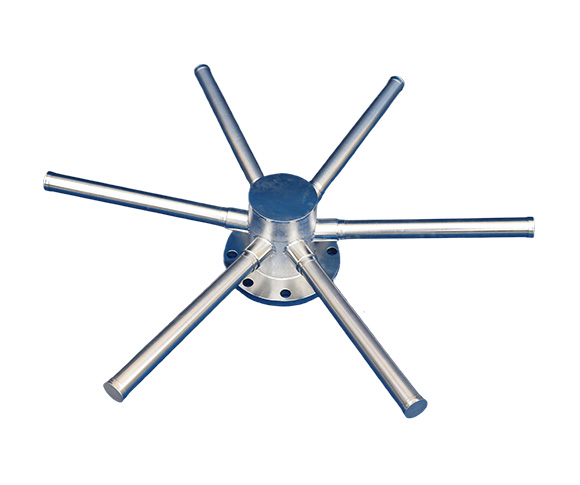

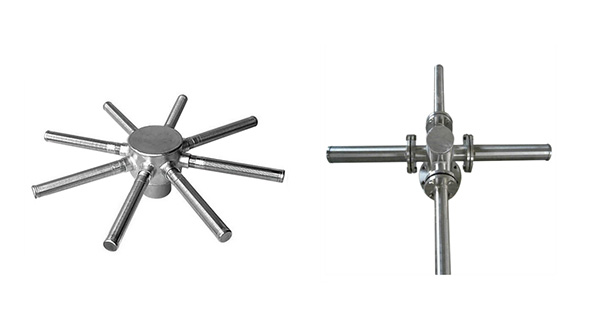

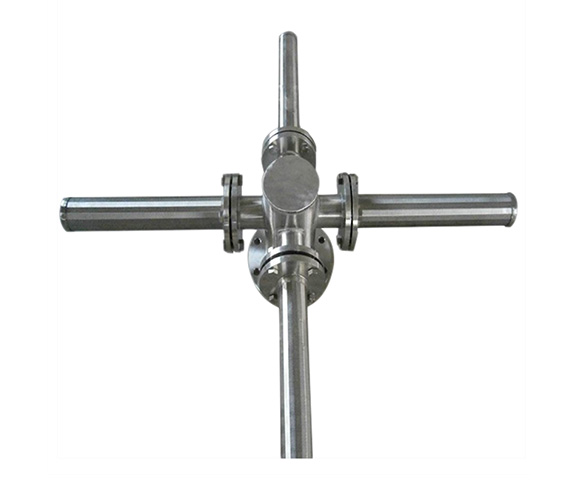

Hub lateral is composed of several screen laterals and a central hub. The non-plugging spider hub style design is ideal for accommodating disc head vessels.The hub radial lateral assemblies has two ending types: threaded ending types and flange ending types.
Made to your specification for size, open area and material, you can expect easy maintenance and exceptional long-term durability.
No matter the final design, you can count on the performance of our hub or header lateral.
Header Laterals

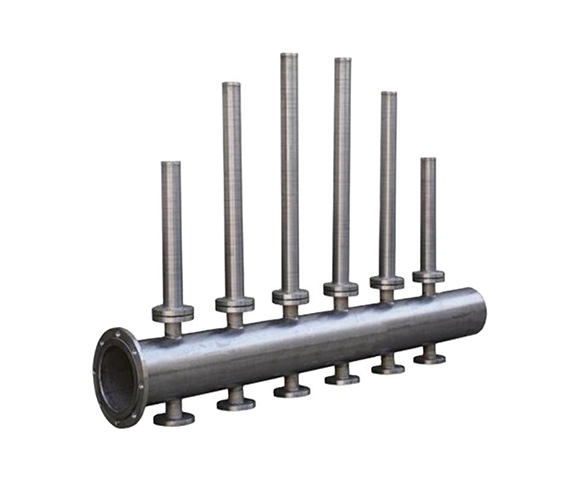

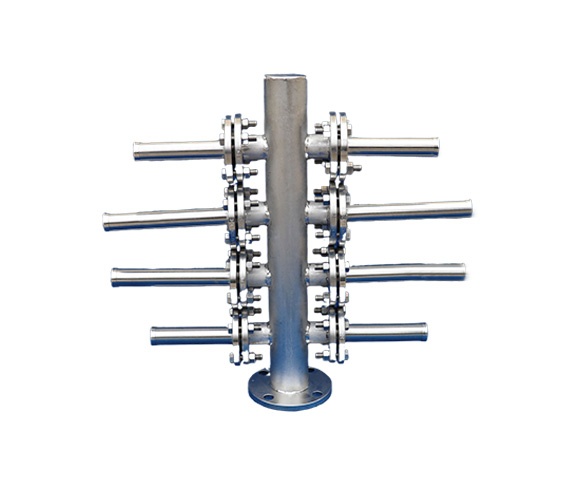

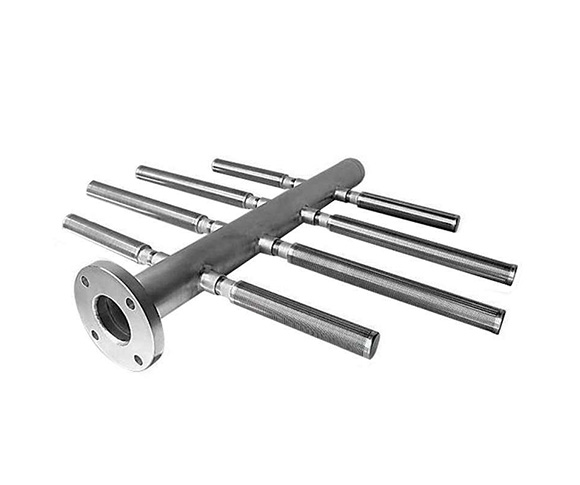

Each header lateral consists of a series of screen laterals connected to a central header to provide uniform flow within a vessel containing treatment media. Header laterals can be used to either distribute inflow or collect flow, depending on their location within a vessel.

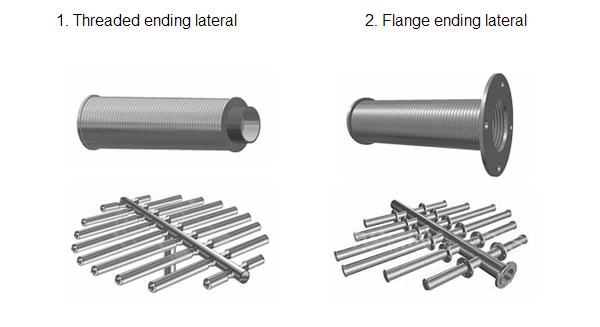

The wedge wire header lateral has two ending types: threaded ending types and flange ending types.
Specification
| Material: | stainless steel, hastelloy steel or other alloy steel. |
| Assemblies end type: | threaded type or flange type. |
| Slot size: | 0.05 mm, 0.1 mm, 0.2 mm, 0.3 mm, 0.5 mm, 1 mm. |
| Normal Lateral Tube QTY : | 4pcs, 6pcs, 8pcs, 12pcs,16pcs, etc. |
| Lateral diameter: | 25-89mm |
Applications
Wedge wire screen is widely used in the under draining applications with the features of effective filtering and screening performance.
They are used for effective media retention in lots of applications, including ion exchangers, carbon towers,clay and sand filtration applications.
