Float Vavle
- Product Description:
- Float valve sub is a special tool to prevent the blow out. It is available with plate type float valve sub and arrow type float valve sub.

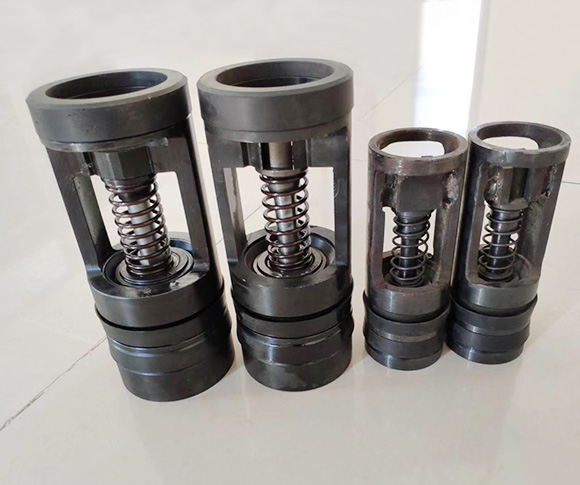

Plunger-Type Float Valves

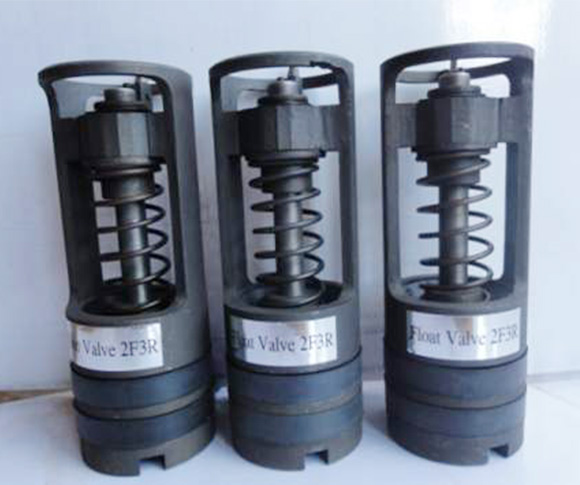

Model F Plunger Type Float Valve 1F2R-5F6R for Assembly Model F
The Model F is a plunger-type float valve that provides a positive instantaneous shut off, providing constant fluid control while drilling. The Model F is a reliable and economical selection under standard drilling operations.

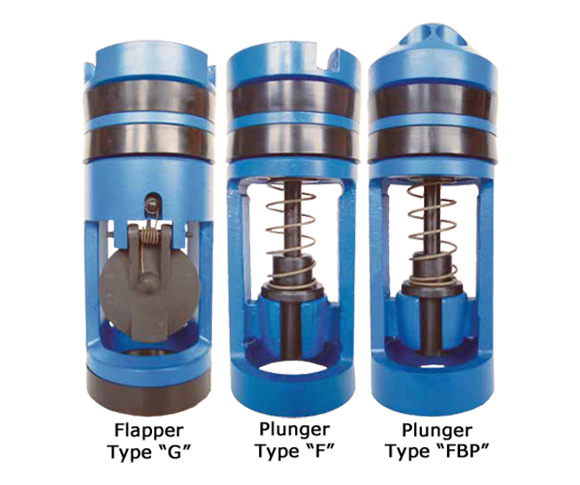

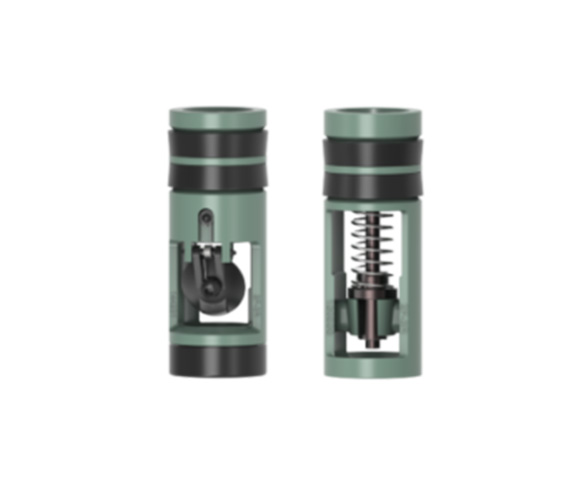

Model G Flapper Type Float Valve 2F3R-5F6R for Assembly Model G
The Model G is a flapper-type float valve that, when opened, offers an unobstructed bore through the float valve. The uniquely designed flapper closes rapidly to prevent shavings from entering the drill string when circulation stops and also assists primary BOP equipment in maintaining internal pressure control. The valve will fully open when the first joint is raised from the hole, preventing pulling wet joints.
Technical Parameters
|
Type |
Dia. of Valve Assembly mm(inch) |
Length Of Valve Assembly mm(inch) |
Dia. Of Float Recess mm(inch) |
Sub Box |
Other Popular Connections |
||
|
Connection API |
Depth Of Recess mm(inch) |
Connection API |
Depth Of Recess mm(inch) |
||||
|
1R |
42.1(1-21/32) |
149.2(5-7/8) |
42.9(1-11/16) |
2-3/8Reg. |
231.8(9-1/8) |
NC23 |
231.8(9-1/8) |
|
2F-3R |
61.1(2-13/32) |
165.1(6-1/2) |
61.9(2-7/16) |
3-1/2Reg. |
266.7(10-1/2) |
NC31 |
260.35(10-1/4) |
|
3-1/2 F |
79.4(3-1/8) |
254(10) |
80.2(3-5/32) |
|
|
NC38 |
362.0(14-1/4) |
|
4R |
88.1(3-15/32) |
211.1(8-5/16) |
88.9(3-1/2) |
4-1/2Reg. |
325.4(12-13/16) |
NC44 |
331.8(13-1/16) |
|
5R |
98.4(3-7/8) |
247..7(9-3/4) |
99.2(3-29/32) |
5-1/2Reg. |
374.7(14-3/4) |
NC50 |
368.3(14-1/2) |
|
5F-6R |
121.4(4-25/32) |
298.5(11-3/4) |
122.2(4-13/16) |
6-5/8Reg.. |
431(17) |
5-1/2IF |
431.8(17) |
|
valve size |
D diameter of valve |
R(D Plus 1/32)Diameter Recess for Valve |
L Length of Valve |
T''Diameter Of Recess for Baffle Plate |
Model F ID Of Valve |
Model G ID Of Valve |
|
1R |
1 21/32 |
1 11/16 |
5 7/8 |
1 5/16 |
1 |
N/A |
|
1F-2R |
1 29/32 |
1 15/16 |
6 1/4 |
1 1/2 |
1 1/4 |
1 |
|
2F-3R |
2 13/32 |
2 7/16 |
6 1/2 |
1 29/32 |
1 9/16 |
1 1/4 |
|
3F |
2 13/16 |
2 27/32 |
10 |
2 7/16 |
1 7/8 |
1 5/8 |
|
3 1/2IF |
3 1/8 |
3 5/32 |
10 |
2 11/16 |
1 7/8 |
1 5/8 |
|
4R |
3 15/32 |
3 1/2 |
8 5/16 |
2 15/16 |
2 5/16 |
1 31/32 |
|
4F |
3 21/32 |
3 11/16 |
12 |
3 1/4 |
2 1/2 |
2 3/16 |
|
5R |
3 7/8 |
3 29/32 |
9 3/4 |
3 3/8 |
2 3/4 |
2 1/4 |
|
5F-6R |
4 25/32 |
4 13/16 |
11 3/4 |
4 9/32 |
3 1/4 |
2 7/8 |
|
6F |
5 11/16 |
5 23/32 |
14 5/8 |
5 3/16 |
4 1/8 |
N/A |
