Filter Nozzles
- Product Description:

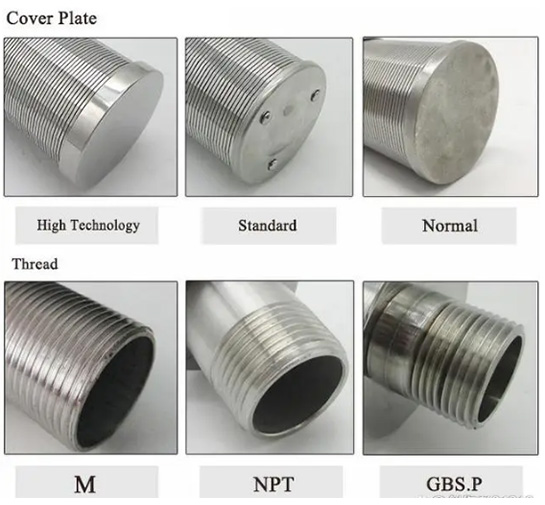

- Shine screen can custom manufacture the wedge wire filter nozzles to cater for your different needs.The screen nozzles consist of cover plates,screen pipe and the fitting pipe.The nozzles are made of stainless steel V shape wires which is spirally wrapped in certain equal and accurate slots.The continuous slot design make the screen nozzles ideal in water treatment applications.Shine Filters use high-quality stainless steel materials, such as 304/316/316L/904L/Hastelloy and so on.The strainer nozzles features corrosion resistance and high temperature resistance.The nozzles are widely used in the power plants, petroleum, chemical, pharmaceutical, food and other industries.and the nozzles are the key component of the water treatment equipments.

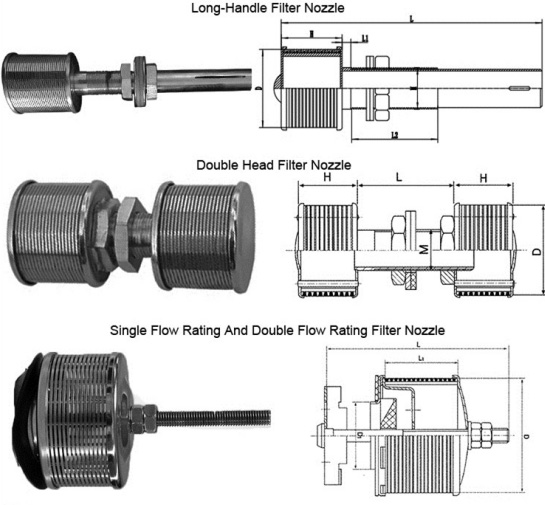

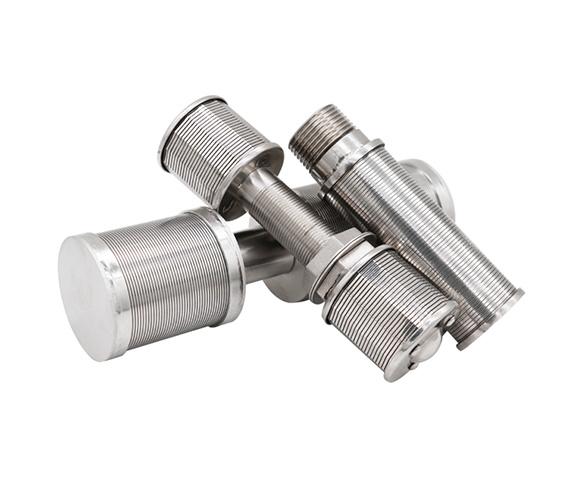

Shine Filters can supply different types of wedge wire spary nozzles
•Single head filter nozzle.

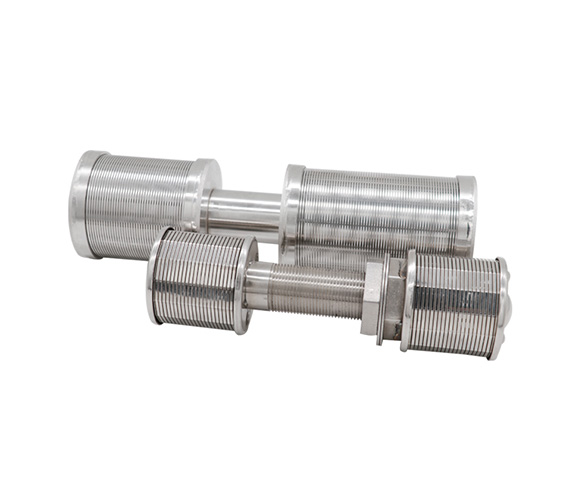

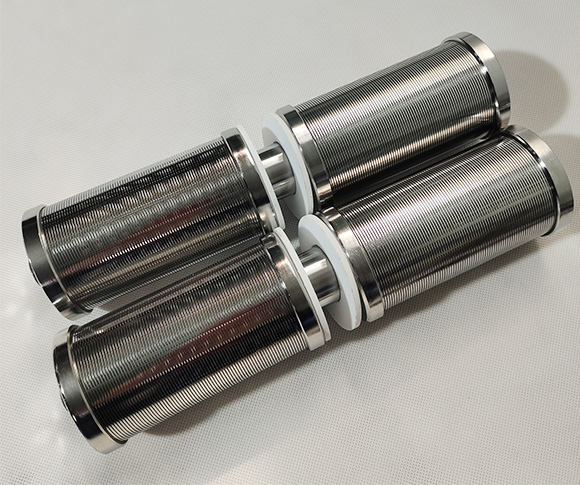

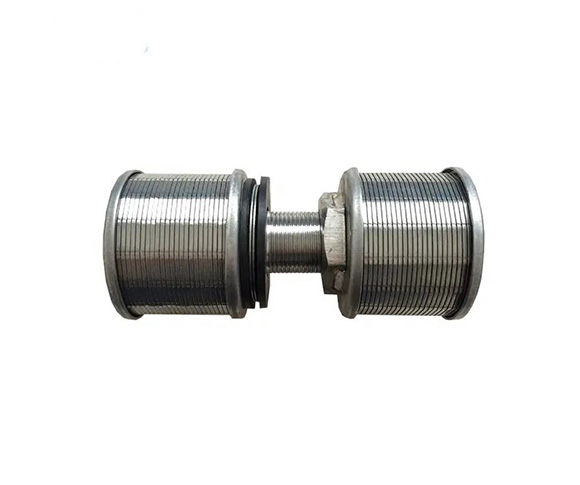

•Double head filter nozzle.
•Double (Single)Flow Rating Filter Nozzles
•Long Handle filter nozzle
•Quick install filter nozzle
Specifications of Wedge Wire Nozzle
•Material: SS304/316L/321/904L
Duplex 2205/2507
Hastelloy C276
Titanium TA2
•Slot size: 0.025 mm - 2 mm.
Specification
| No | Model | Gap | Dimensions(mm) | Gap area mm2 | |||
| D | H | L | M | ||||
| 1 | TY45-1-A | 0.2-0.5 | 45 | 25 | 90 | M24 | 280 |
| 2 | TY45-1- B | 0.2-0.5 | 45 | 35 | 100 | M24 | 280 |
| 3 | TY45-1-C | 0.2-0.5 | 45 | 45 | 110 | M24 | 280 |
| 4 | TY53-2-A | 0.2-0.5 | 53 | 35 | 100 | M24 | 450 |
| 5 | TY53-2-B | 0.2-0.5 | 53 | 45 | 110 | M24 | 450 |
| 6 | TY53-2-C | 0.2-0.5 | 53 | 55 | 120 | M32 | 450 |
| 7 | TY57-3-A | 0.2-0.5 | 57 | 35 | 100 | M32 | 520 |
| 8 | TY57-3-B | 0.2-0.5 | 57 | 45 | 110 | M32 | 530 |
| 9 | TY57-3-C | 0.2-0.5 | 57 | 55 | 120 | M32 | 530 |
| 10 | TY70-4-A | 0.2-0.5 | 70 | 40 | 105 | M32 | 530 |
| 11 | TY70-4- B | 0.2-0.5 | 70 | 50 | 115 | M32 | 530 |
Applications of wedge wire nozzle:
Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as, under drain media retention elements, flow distributors in demineralizers, water softeners in pressure and gravity sand filters.
Except for filtering and screening applications, wedge wire nozzles have other applications. Just install several nozzles uniformly to be used as collectors at the bottom of the vessels.
