Drill Pipe Screen
- Product Description:
- Drill pipe screen,used to filter the drilling fluid and protect the MWD instrument in the petroleum drilling,is suitable to filter the drilling fluid of the petroleum an geological drilling.

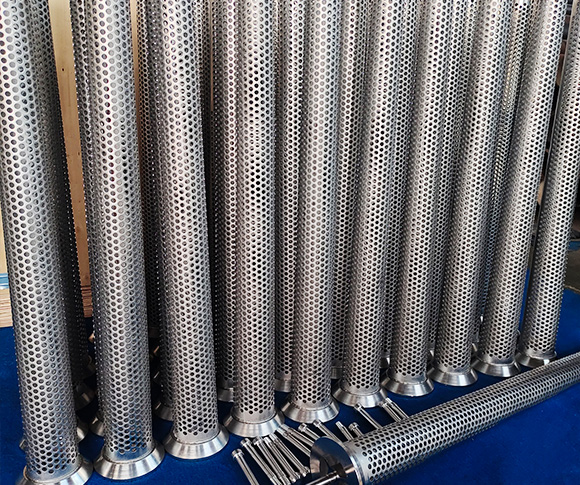

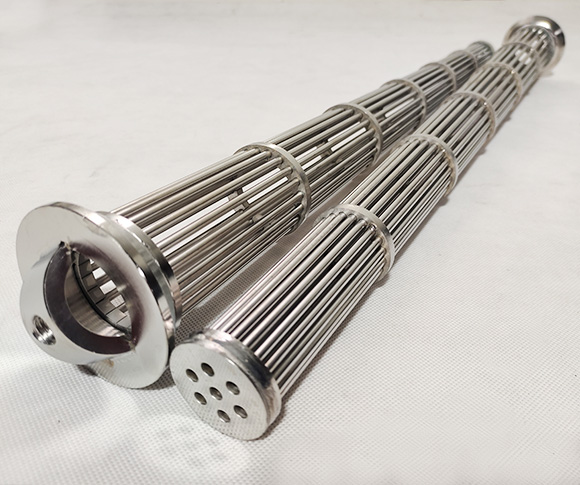

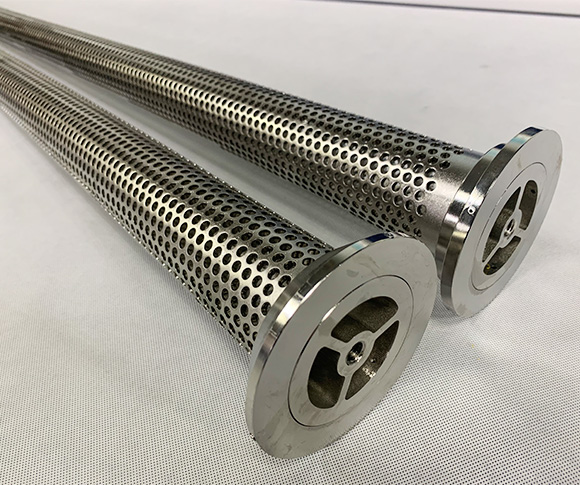

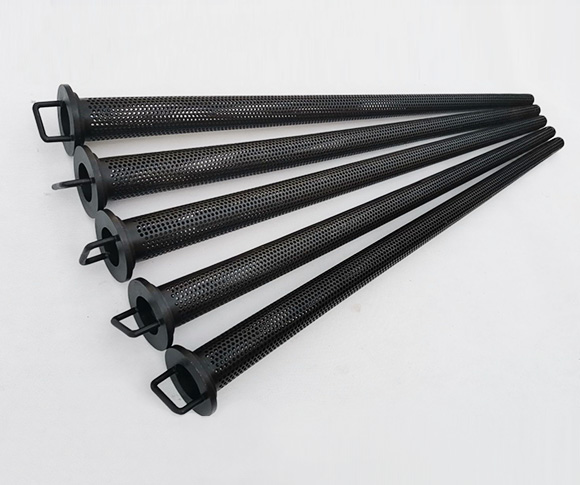

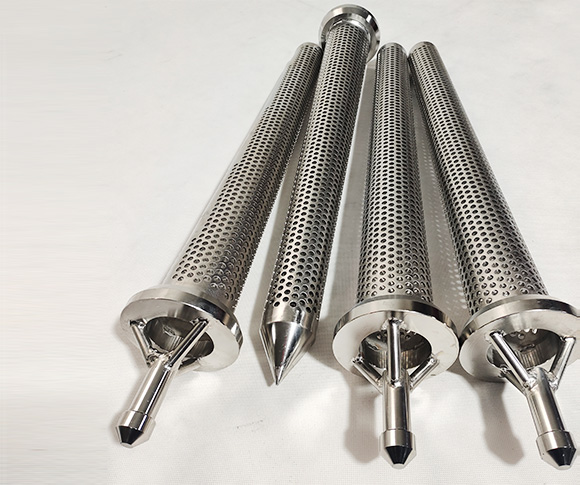

- Drilling pipe screen is avaliable in rod/bar type, slotted type and perforated type in retrievable and non-retrievable drll pipe mud screens. The drilling pipe screen is made of stainless steel material through special surface treatment to extend its long service life and improve corrosion and erosion resistance performance.
Specification
| material: | 304 & 316 stainless |
| perforation: | 3/16” hole on 5/16” stagger |
| retrievable with standard overshot | |
| interchangeable ring flanges | |
| 33% open area perforation | |
| internal wear distribution sleeve | |
| full-length safety retaining rod | |
| drill pipe screens OEM support | |
| drill pipe filter sample available | |
Application
Drill Pipe Mud Screens are an integral part of any directional drilling application to protect the valuable equipment for oilfield drilling operations
