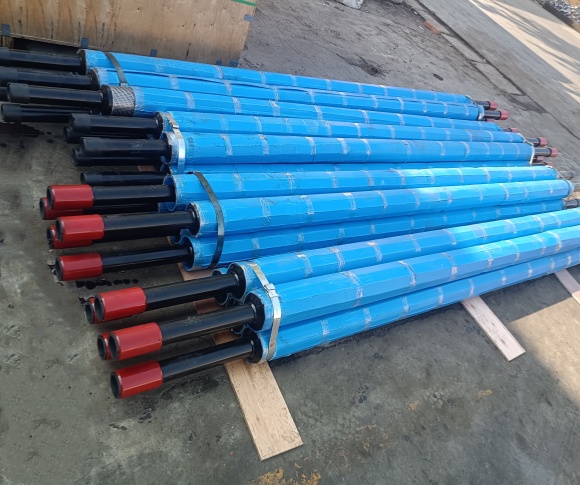

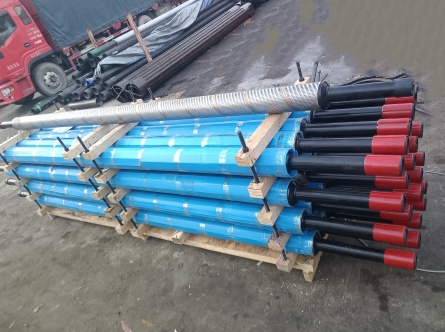

2 7/8″ Premium Screen

The main parameters of the well screen:

• Pipe diameter – 73 mm (2 7/8″);
• Tube length – 4200 mm;
• Tube wall thickness – 5.5 mm;
• Tube grade – J55
• Threaded connection – 2-7/8” EUE Box x Pin
• The diameter of holes in the pipe is 10mm
• Density of holes is 120 pcs/meter.
• Length of the filter element – 3380 mm;
• The diameter of the filter element is 138 mm.
• Ceramic sand:20-25 mesh,
• The quantity:40 pcs
•
